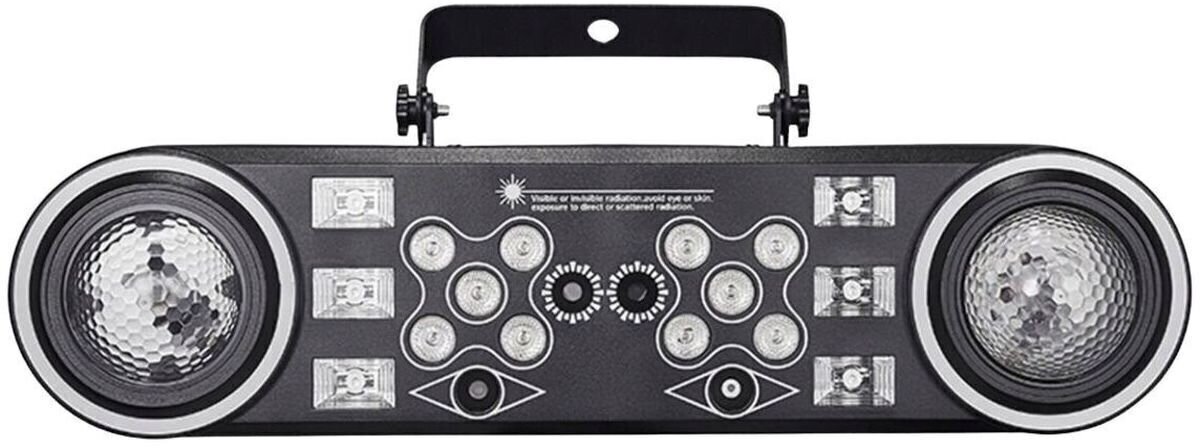

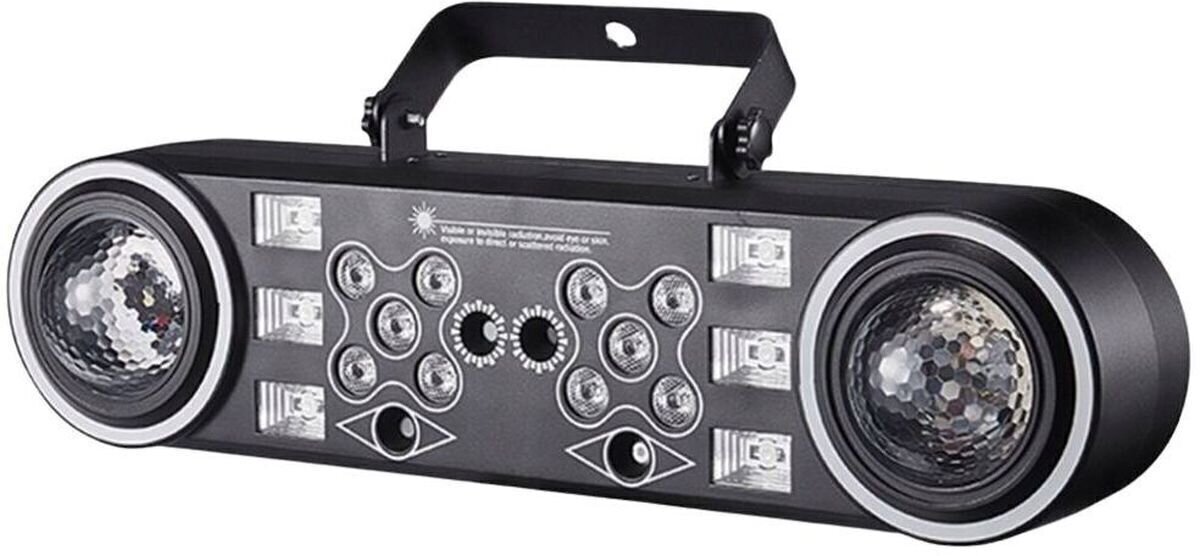

Light4Me MAGIC BAR 4 Lighting Effect

MAGIC BAR 4 is a 6-in-1 lighting multi-effect for DJs, bands and event organizers that lets you quickly build a complete lighting setup for a party, wedding or small stage. One bar combines Magic Ball, Water Wave, Ring, Wash, UV and four laser effects, so the user does not need to put together several separate fixtures. At a wedding, the device can light up the dance floor with colorful beams, a water wave effect, UV light and dynamic lasers, while the remote control makes it easy to change the mood without walking up to the control panel. It is a convenient choice wherever quick setup, impressive performance and mobility matter.

LIGHT4ME MAGIC BAR 4 in practice - fast effects without complicated setup
Operation is simple because the fixture offers auto, sound, master/slave, DMX and manual control modes. At a private party or school dance, simply launch one of 9 automatic programs or 2 sound-activated programs, and the microphone will match the lighting performance to the music. The wireless remote with a CR2025 battery speeds up setting changes, while the LED display with 4 buttons is useful for precise configuration.
For lighting operators and DJs, 29-channel DMX control and the capability to connect up to 17 fixtures in one DMX line are key advantages. The 3-pin XLR-type DMX data input/output connectors make integration with a controller easier, while the IEC C14 power input fits a typical stage power cord. The 0-20 Hz strobe effect, linear 0-100% dimmer and adjustable rotation speed of effect motors let you adapt the show to a calm first dance, an energetic club set or an artist entrance on stage.

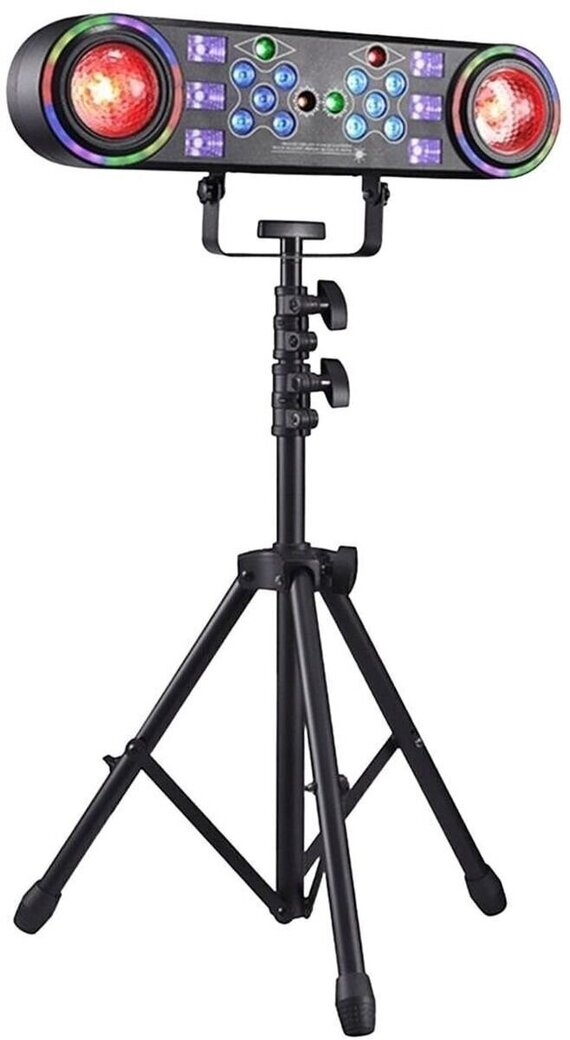

Mobile lighting set with carry bag
This set reduces the number of separate fixtures, accessories and time needed to prepare the setup. The complete set weighs 3.8 kg net, and the fixture itself measures 50 x 11.5 x 20 cm, so it fits easily into the 64 x 26 x 18.5 cm carry bag. The bag’s contoured foam insert protects the components during transport, the double zipper makes packing easier and two handles improve carrying comfort.
The ABS housing, passive cooling system and IP20 rating indicate indoor use. It is a good choice for wedding venues, clubs, community centers, conference rooms and mobile DJ setups. Check out this model when you need one bar for colorful background lighting, dynamic effects, lasers, UV and fill light.

Key advantages of LIGHT4ME MAGIC BAR 4
The biggest advantage of LIGHT4ME MAGIC BAR 4 is the combination of six effects in a lightweight, complete set with a stand and remote control. The user gets Magic Ball, Water Wave, Ring, Wash, UV, 4 lasers, DMX, music-controlled operation and automatic programs in one fixture. Order LIGHT4ME MAGIC BAR 4 and prepare a wedding dance floor, stage or corporate event for an impressive lighting setup without an extensive installation.

Technical specifications:

• Device type: DMX LED lighting multi-effect with wireless remote control, lighting stand, mounting bracket and carry bag
• Light sources:
  • Magic Ball: 15W RGBW 4-in-1 LED
  • Water Wave: 15W RGBW 4-in-1 LED
  • Ring: 42x0.2W RGB 3-in-1 LED
  • Wash: 10x4W RGBW 4-in-1 LED
  • UV effect: 6x3W UV LED
  • Laser: 2x red 100 mW, 2x green 50 mW
• Color palette of Magic Ball/Water Wave/Wash light sources: RGBW (red, green, blue, white)
• Smooth color mixing: RGBW (Magic Ball/Water Wave/Wash)
• Dimmer: linear, full-range (0-100%)
• Strobe effect: 0-20 Hz, adjustable flash rate
• Wash light source sections: 2
• Magic Ball motor rotation: manual within 0-180° range or rotation with automatic direction change and adjustable speed
• Water Wave and laser motor rotation: endless rotation, adjustable speed
• Ring static colors: 7 static colors
• Ring dynamic effects: 20 macros, adjustable speed
• Auto mode programs: 9 programs, adjustable program speed
• Sound mode programs: 2 programs, adjustable microphone sensitivity
• Control: automatic, DMX, infrared wireless remote control, manual
• Remote control battery: CR2025
• Control panel: LED display (7-segment, 4-digit) + 4 buttons
• Operating modes: auto, DMX, master/slave, sound
• DMX channels: 29
• DMX data connectors: 3-pin male XLR (input) / female XLR (output)
• Power connector: IEC C14 male (input)
• Multiple fixture connection capability (DMX signal daisy-chain): yes
• Maximum number of fixtures in one DMX line: 17
• Power cord length: 1.5 m
• Power supply voltage: AC 100-240V, 50/60 Hz
• Power consumption: 100 W
• Fuse: 5A
• IP protection rating: IP20
• Cooling system: passive (through the housing)
• Stand type: lighting, tripod, adjustable
• Non-slip stand feet: yes
• Carry bag: double zipper, dual carrying handles, black, synthetic fabric, contoured foam insert
• Floor operation, stand mounting and truss mounting capability: yes
• Mounting hole in the bracket: M10
• Housing material: ABS plastic
• Mounting bracket material: powder-coated iron
• Stand material: iron
• Device color: black
• Device dimensions: 50 x 11.5 x 20 cm
• Stand dimensions (folded): 58 x 8 x 8 cm
• Stand dimensions (extended): 52.5 x 52.5 x 172 cm
• Device dimensions on stand: 52.5 x 52.5 x 192 cm
• Carry bag dimensions: 64 x 26 x 18.5 cm
• Device net weight: 1.64 kg
• Stand net weight: 1.14 kg
• Carry bag net weight: 0.55 kg
• Total net weight: 3.8 kg
