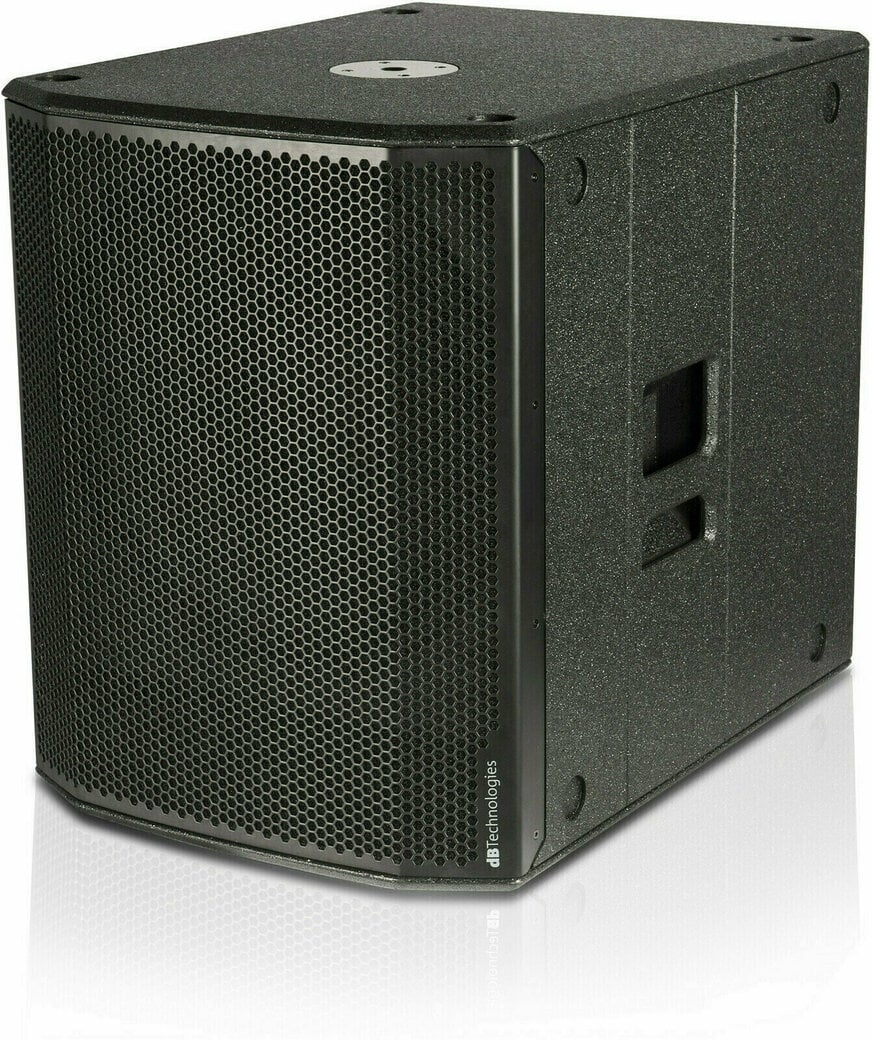

dB Technologies SUB 618 Active Subwoofer

Active 18" Subwoofer for Compact PA Systems

The dB Technologies SUB 618 is a bass-reflex active subwoofer built around an 18" transducer and a 600 W RMS Class D amplifier. A built-in 28/56-bit DSP and switchable crossover let one cabinet anchor a 2.1 satellite rig without external processing. Reaching 133 dB SPL from a 31.1 kg plywood enclosure, it delivers controlled low end for mobile DJs and small bands.

Built-In Crossover, Polarity, and Sub Mode

Two balanced XLR inputs feed a stereo crossover sent to the XLR outputs in True Bypass or Xover mode. A polarity inversion switch and a Sub Mode toggle (Flat or Boost) let the operator correct phase and add low-end weight without external EQ. Convection cooling keeps the amp stage silent in quiet applications.

18" Driver Output and Frequency Range

The 18" woofer with a 2.5" voice coil moves serious air down to 35 Hz, while the -10 dB limit of 130 Hz hands off cleanly to mid-high tops.

• LF Driver: 18" with 2.5" voice coil — chest-impact low end
• Frequency Range [-10 dB]: 35 Hz - 130 Hz — sub-bass coverage
• Max SPL: 133 dB — headroom for small-to-mid venues

Class D Power with 28/56-bit DSP

The 600 W RMS / 1200 W peak Class D amplifier with SMPS delivers efficiency. A 28/56-bit DSP runs Peak, Thermal, and RMS limiters to protect the driver.

• RMS Power: 600 W — continuous headroom
• Peak Power: 1200 W — transient headroom for bass drops
• DSP: 28/56-bit — crossover, limiting, EQ presets

XLR I/O, M20 Pole Mount, Plywood Cabinet

Balanced XLR inputs accept a stereo or mono feed, while the XLR outputs switch between link and crossover modes. The M20 pole mount accepts standard distance rods.

• Inputs: 2x balanced XLR — mono or stereo line-level
• Outputs: 2x balanced XLR — link or crossover
• Dimensions: 500 x 625 x 690 mm — fits standard doors
• Weight: 31.1 kg — manageable with side handles
